| ブランド名: | Winsmart |
| モデル番号: | SMTPD2 |
| Moq: | 1台 |
| 価格: | USD2000-5000/unit |
| パッケージングの詳細: | 合板ケース |
| 支払い条件: | T/T |
1). Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.
2). Suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.
3). Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.
4). cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.
5). Blades can be re-sharpened.
6). Cutting length could be customized.
7). Durable design for long term usage.
| Model | SMTPD2 |
|---|---|
| Max cutting length | 200-580mm |
| CE approval | Yes |
| PCB connection | V-cut |
| PCB material | FR4, MCPCB, CEM |
| PCB thickness | 0.3-5mm |
| Blade type | Linear blade |
| Cutting speed | Adjustable |
| Cutting type | Shear |
| Operation | Foot pedal, manual |

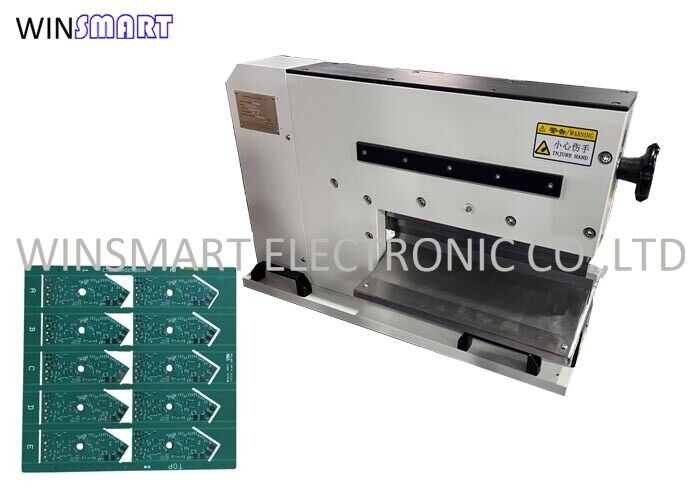

The primary function of the PCB Cutter is to cut through PCBs with a maximum clearance of 2mm. This ensures that it can handle standard and more complex PCB designs, offering efficient separation of individual board sections or trimming excess material. The guillotine mechanism allows for quick and consistent cutting without the need for multiple passes, improving workflow efficiency in PCB assembly or repair.
|
| ブランド名: | Winsmart |
| モデル番号: | SMTPD2 |
| Moq: | 1台 |
| 価格: | USD2000-5000/unit |
| パッケージングの詳細: | 合板ケース |
| 支払い条件: | T/T |
1). Pneumatic driven, electric hybrid design, double straight knife cutting, sutiable for dividing precision SMD sheet, aluminum circuit board.
2). Suitable for all thickness PCB, cutting board stroke is less than 2mm, no operational safety concerns.
3). Reduce the internal stress generated when cutting the board to below 180μST to avoid tin cracking and prevent damage to precision parts.
4). cut the edge of the V groove and the width of the part is 0.3mm, the height is 50mm.
5). Blades can be re-sharpened.
6). Cutting length could be customized.
7). Durable design for long term usage.
| Model | SMTPD2 |
|---|---|
| Max cutting length | 200-580mm |
| CE approval | Yes |
| PCB connection | V-cut |
| PCB material | FR4, MCPCB, CEM |
| PCB thickness | 0.3-5mm |
| Blade type | Linear blade |
| Cutting speed | Adjustable |
| Cutting type | Shear |
| Operation | Foot pedal, manual |
The primary function of the PCB Cutter is to cut through PCBs with a maximum clearance of 2mm. This ensures that it can handle standard and more complex PCB designs, offering efficient separation of individual board sections or trimming excess material. The guillotine mechanism allows for quick and consistent cutting without the need for multiple passes, improving workflow efficiency in PCB assembly or repair.
