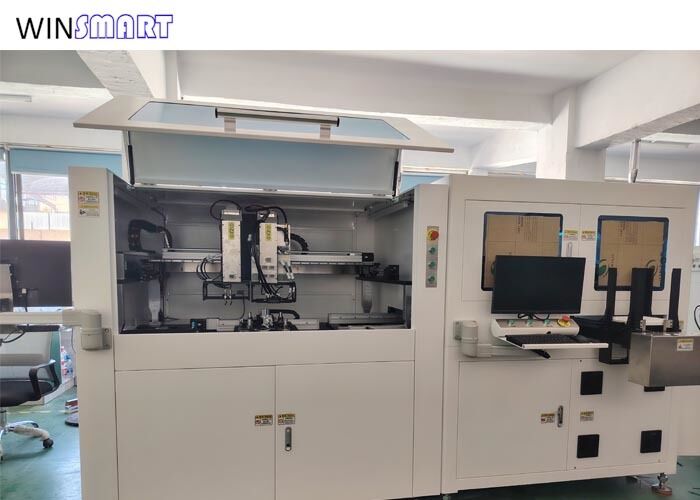

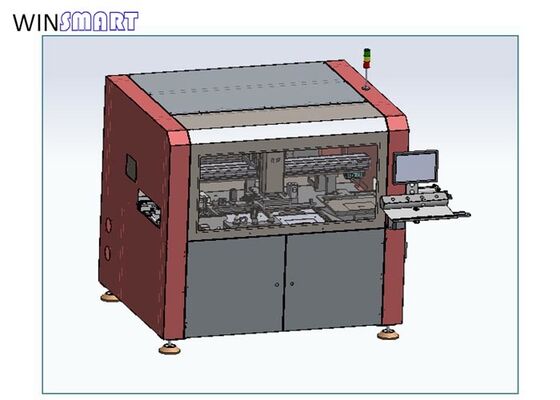

Bottom Cutting Inline PCB Depaneling Router and PCBA Package Solution Functions:

1. PCB Depaneling:

   • The system uses automated depaneling tools (such as v-scoring, router cutting, or laser cutting) to precisely separate individual PCBs from a larger panel, ensuring minimal stress and clean edges for the PCB.

   • After depaneling, the individual PCBs are fed into the next step of the production line for assembly, soldering, or inspection.

2. Tray Destacking:

   • The system automatically destacks trays containing stacked PCBs or PCBAs. It lifts and separates the top PCB from the tray, preparing it for further processing.

   • This is achieved using automated systems like robotic arms, grippers, or vacuum systems to pick up and transfer the PCBs without causing damage to the components.

3. Tray Stacking:

   • Once the PCBs are processed, the system automatically re-stacks the PCB assemblies or completed PCBs into trays.

   • The system ensures precise alignment and stacking to avoid damaging components during the stacking process.

This fully automated solution improves the overall efficiency of the production process by reducing manual labor and errors associated with human handling.

• Fully automated operation for high-volume production
• PC and CCD vision system for precise cutting accuracy
• Programming with compensation and integrated dust collection
• Bottom cutting and vacuum cleaner system for clean PCB surfaces and workshop environment
• Flexible design adaptable to different product types with custom models available
• Automatic tray loading of individual PCBA after depaneling
• AGV-compatible tray handling system
• Optional barcode scanner integration
• MES connection support for smart factory integration

This automated depaneling system is widely used throughout the electronic product manufacturing industry. Traditional manual depaneling methods generate significant stress that negatively impacts product quality, making machine-based depaneling the preferred solution. This inline router system features loader and unloader integration for ATE test lines, high-speed spindle operation, low-stress PCBA separation, and ensures precision and cleanliness for high-volume production environments.

Automation significantly speeds up both depaneling and tray handling, reducing cycle times and improving overall production throughput.

By automating both the depaneling and tray management processes, the system minimizes the need for manual labor, reducing labor costs and enhancing workforce productivity.

The automated system ensures that PCBs and PCBAs are handled with high precision, reducing the risk of damage during the depaneling and tray handling process.

Automated processes result in consistent handling and stacking of PCBs, ensuring a high level of quality and reducing variability compared to manual methods.

With high-speed, continuous operation, the system reduces downtime in between processes, enhancing overall line productivity.

The system minimizes the risk of human error in both the depaneling and tray management stages, ensuring that the process is carried out with greater accuracy.

The system can handle trays up to 450x400mm, making it adaptable to various PCB sizes and configurations.

Automated systems reduce the need for manual handling of potentially sharp-edged PCBs and trays, improving workplace safety for operators.

The depaneling and tray management system can be easily integrated with other parts of an automated production line, such as component placement, soldering, or inspection systems, ensuring seamless workflow.
