| ブランド名: | Winsmart |
| モデル番号: | SMTIR500 |
| Moq: | 1セット |
| 価格: | USD40000-80000 |
| パッケージングの詳細: | 合板ケース |
| 支払い条件: | T/T、L/C、ウェスタンユニオン |

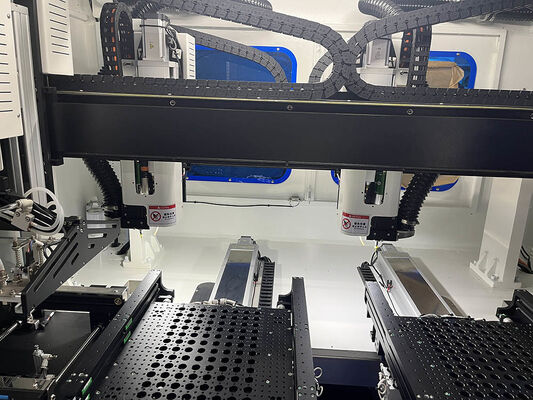

This high-precision, automated solution is designed for separating individual PCBs from panels. Featuring dual spindles and working tables, it significantly boosts productivity in high-volume electronics manufacturing. Supports MES integration and barcode scanning for seamless traceability and real-time production monitoring.
| Model Number | SMTIR500 |
|---|---|
| Machine Size | Approx 2250(L)x1300(W)x1750(H)mm |
| Machine Weight | Approx 800kgs |
| Max PCB Size | 300x450mm (customized), Dual tables |
| PCB Thickness | 0.4-6mm |
| Cutting Spindle | 100000rpm/min |
| Cutting Accuracy | ±0.05mm |
| Repeat Accuracy | ±0.01mm |
| Power Supply | AC 380V, 50/60Hz, 3KW |

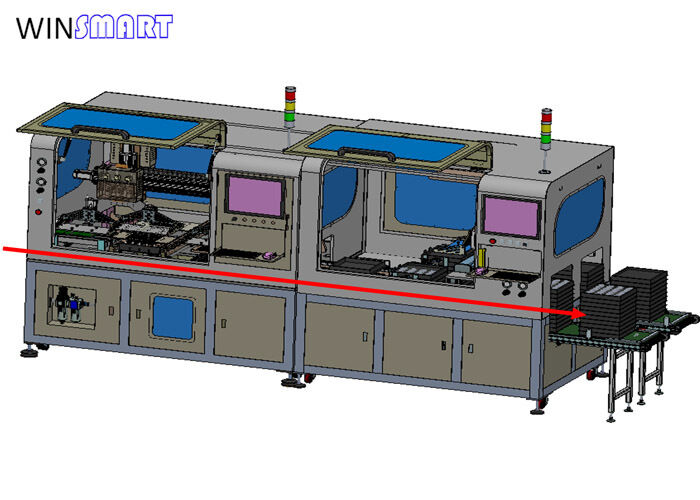

It is widely used in electronic product manufacturing industry. Because the traditional manual folding method will produce strong stress, which has a serious impact on the product quality, so the manual folding has been basically replaced by the machine cutting. This inline router system, with dual separated spindles and dual tables for high volume production.
|
| ブランド名: | Winsmart |
| モデル番号: | SMTIR500 |
| Moq: | 1セット |
| 価格: | USD40000-80000 |
| パッケージングの詳細: | 合板ケース |
| 支払い条件: | T/T、L/C、ウェスタンユニオン |
This high-precision, automated solution is designed for separating individual PCBs from panels. Featuring dual spindles and working tables, it significantly boosts productivity in high-volume electronics manufacturing. Supports MES integration and barcode scanning for seamless traceability and real-time production monitoring.
| Model Number | SMTIR500 |
|---|---|
| Machine Size | Approx 2250(L)x1300(W)x1750(H)mm |
| Machine Weight | Approx 800kgs |
| Max PCB Size | 300x450mm (customized), Dual tables |
| PCB Thickness | 0.4-6mm |
| Cutting Spindle | 100000rpm/min |
| Cutting Accuracy | ±0.05mm |
| Repeat Accuracy | ±0.01mm |
| Power Supply | AC 380V, 50/60Hz, 3KW |
It is widely used in electronic product manufacturing industry. Because the traditional manual folding method will produce strong stress, which has a serious impact on the product quality, so the manual folding has been basically replaced by the machine cutting. This inline router system, with dual separated spindles and dual tables for high volume production.
