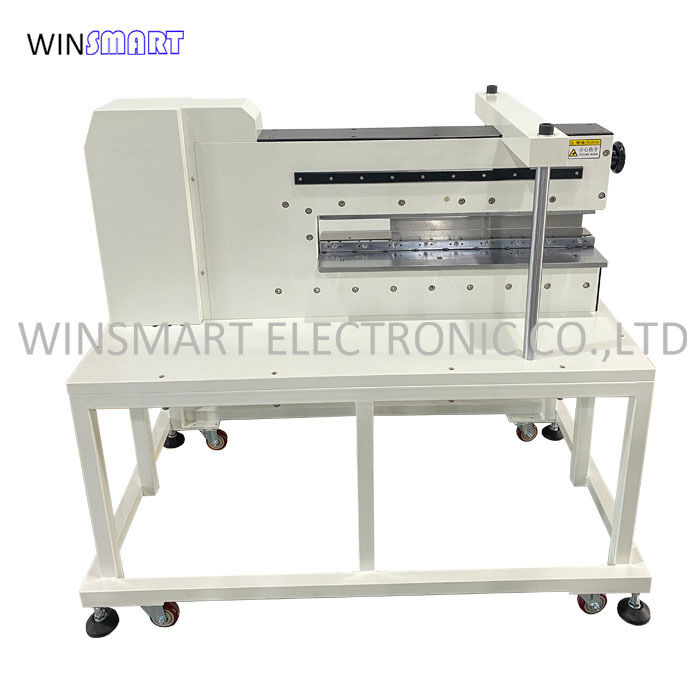

200u Strain Metal Core V Cut PCB Depanelizer Machine for 580mm Boards

ブランド名:	Winsmart
モデル番号:	SMTPD2
Moq:	1台
価格:	negotiable
パッケージングの詳細:	合板ケース
支払い条件:	T/T

起源の場所:

駆動モード:

0.4-0.6MPA

厚さを切る:

0.6-3.5mm

580mm

繰り返す能力:

±2 μm

PCB材料:

アルミ,CEM,FR4

メタルコア V カット PCB デパネルライザー

供給の能力:

年間500台

200u Strain Metal Core V Cut PCB Depanelizer Machine for 580mm Boards

V Cut PCB Depanelizer Description:

The V-Cut PCB depanelizer is a high-precision machine designed to separate pre-scored (V-grooved) PCBs quickly, cleanly, and without inducing mechanical stress. Using a pneumatically driven circular blade system, this separator ensures smooth operation and prevents damage to sensitive components during depaneling. Its extended cutting length of 580mm makes it ideal for longer PCBs used in LED lighting, displays, and industrial control systems.

V Cut PCB Depanelizer Features:

400mm Cutting Length: Handles long aluminum PCBs, such as LED light bars and power modules.

Rigid Blade System: Hardened steel circular blades for cutting aluminum and metal-core PCBs.

Adjustable Blade: Clearance Supports different thicknesses (commonly 0.6mm – 3.0mm).

V-Groove Compatibility: Designed for pre-scored/aluminum V-cut PCBs.

Manual or Pneumatic Drive: Depending on model — manual lever or foot-pedal-operated pneumatic system.

Low Thermal Impact: Mechanical cutting avoids heat-related issues common in laser systems.

Burr-Free Cutting: Smooth, clean edges with minimal need for post-processing.

Easy Maintenance: Simple blade replacement and low upkeep requirements.

V Cut PCB Depanelizer Specifications:

Model	SMTPD2
Driven	Pneumatic
Blade length	600mm
Cutting fixture	Available
Warranty	1 year
PCB feeding	Manual
PCB material	Aluminium, CEM, FR4
Repeat ability	±2 μm
Control system	Manual
Name	Pneumatic PCB Separator

V Cut PCB Depanelizer Applications:

It is widely used in modern V-score PCB industry, improve cutting effect to avoid component damage.

Please provide below parameters of your panels to confirm if standard machine is workable for your applications:

1. Max component height

2. Min distance between component and v-scoring

3. Max panel length

V Cut PCB Depanelizer Advantages:

No Thermal Stress: Unlike laser or router methods, mechanical cutting avoids heat buildup.

High Cutting Accuracy: Clean, burr-free separation of dense aluminum boards.

Dust-Free Operation: No debris or dust like with mechanical routing.

Supports Thick PCBs: Designed for robust, high-current board materials.

Long Board Compatibility: Ideal for LED strips and linear lighting applications.

Repeatable Results: Consistent quality across high-volume production.

Packing and Shipping:

Product Packaging:

The PCB separator machine will be packaged in a sturdy cardboard box to prevent damage during transportation.
All necessary accessories and parts will be securely placed inside the box.
The box will be labeled with the product name and specifications for easy identification.

Shipping:

The product will be shipped via a reputable courier service to ensure timely and safe delivery.
Customers will receive a tracking number to monitor the status of their shipment.
The shipping cost will be calculated based on the customer's location and shipping preferences.
International customers may need to pay additional customs fees upon receipt of their order.

FAQ:

Q: What is the brand name of this PCB Separator Machine?

A: The brand name of this product is Winsmart.

Q: What is the model number of this PCB Separator Machine?

A: The model number of this product is SMTPD2.

Q: Where is this PCB Separator Machine manufactured?

A: This product is manufactured in China.

Q: Does this PCB Separator Machine have any certifications?

A: Yes, this product is CE certified.

Q: What is the minimum order quantity for this PCB Separator Machine?

A: The minimum order quantity for this product is 1 unit.

Q: Is the price of this PCB Separator Machine negotiable?

A: Yes, the price of this product is negotiable.

Q: What is the packaging method for this PCB Separator Machine?

A: This product is packaged in a Plywood Case.

Q: What is the delivery time for this PCB Separator Machine?

A: The delivery time for this product is 2-7 days.

Q: What are the payment terms for this PCB Separator Machine?

A: The payment terms for this product are T/T.

Q: What is the supply ability for this PCB Separator Machine?

A: The supply ability for this product is 500 Units/Year.
