| ブランド名: | Winsmart |
| モデル番号: | SMTS01 |
| Moq: | 1セット |
| 価格: | USD1-10000/Set |
| パッケージングの詳細: | 合板ケース |
| 支払い条件: | L/C、T/T、ウェスタンユニオン |

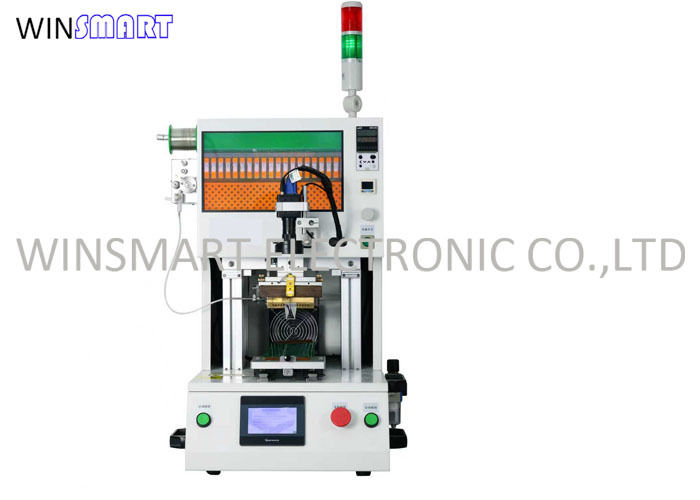

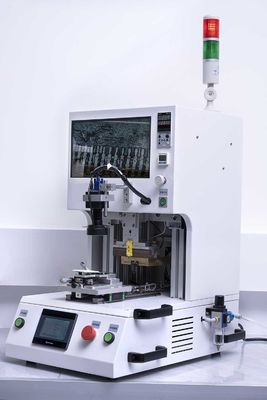

Automatic Solder Wire Feeding Hot Bar Soldering Machine with LCD Display
Automatic Wire Soldering Machine Introduction:
An Automatic Wire Soldering Machine is a precision device designed to automate the process of soldering wires to PCBs (Printed Circuit Boards). These machines are widely used in electronics manufacturing, automotive wiring harness production, and other industries requiring high-speed and high-quality soldering.
Automatic Wire Soldering Machine Features:
1. Use pulse heating technology, the temperature control is accurate, and the temperature sampling frequency is 0.1s
2. Multi stage temperature rise control, ±2℃ soldering precision
3. Real time temperature curve display
4. High precision soldering, ensures consistent solder joints with accurate temperature and positioning.
5. Automatic wire feeding: feeds and positions wires automatically for efficient operation.
6. Programmable operation: offers customizable soldering patterns, timing, and temperature profiles.
Automatic Wire Soldering Machine Specification:
| Machine size | 500×500×600mm |
| Working area | Max 200*170mm |
| Machine weight | 62Kg |
| Working air pressure | 0.6-0.8Mpa |
| Fixture quantity | 1 |
| Thermode head size | Max 40*3mm |
| Welding precision | pitch 0.2mm |
| Pressing time | 1~99.9s |
| Temperature settings | RT~500℃ tolerance ±5℃ |
| Welding pressure | 1~20Kg |
| Temperature settings | Two |
| Working environment | 10-60℃,40%-95% |
| Power supply | AC220V±10% 50HZ,2200W |
| Alignment mode | CCD + LCD Monitor |
| Feeding mode | Manual |
| Starting mode | Press start button |
| Rotation Platform | Cylinder control,tolerance<0.02mm |
| Thermode material | Molybdenum alloy |
| Thermode size | Max 60mm long |
| Origin | China |
| Fixing mode | Customized fixture |
| Application | FFC to PCB, FPC to PCB, Wires to PCB |
| Warranty | 12 months |
Automatic Wire Soldering Application:
|
|
