商品の詳細:
|
| 空気源: | 0.4Mpa | PCB材料: | 金属 |
|---|---|---|---|
| 重量: | 75KG | 電圧: | 220V/110V |
| PCBの厚さ: | 0.5~3mm | 名前: | VカットのPCBの分離器 |
| ハイライト: | VはPCB Depanelizerを、前に記録したPCB Vの切口機械、FR4 PCB Vの切口機械を切った,Pre Scored PCB V Cut Machine,FR4 PCB V Cut Machine |
||
V-Cut PCB Separator PCB V Cut Machine For Pre-scored Printed Circuit Board
V-Cut PCB Separator Overview:
It is widely used in modern PCB industry.
We offer the widest selection of depaneing machines for pre-scored and routed boards, including punching, routing, v-groove cutting
and laser cutting solutions.
V-Cut PCB Separator Principle:
It uses two linear blades to separate boards with less stress, like a scissor.
And operator cannot mis-feed boards.
It is widely used in modern V-score PCB industry, improve cutting effect to avoid component damage.
V-Cut PCB Separator Specification:
| Model | SMTPD2 |
| Machine Dimension | 720x300x440mm |
| Max Cutting Length | 330mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Power | 110/220V |
| Machine Weight | 130kgs |

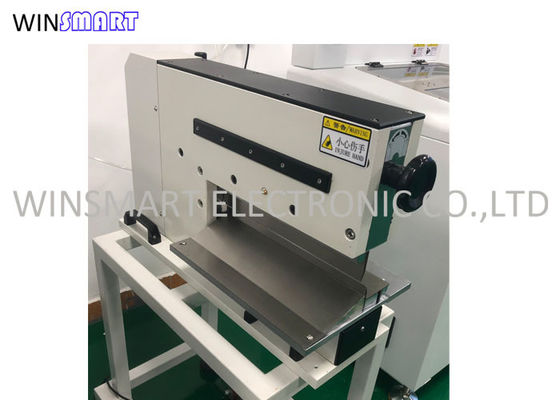

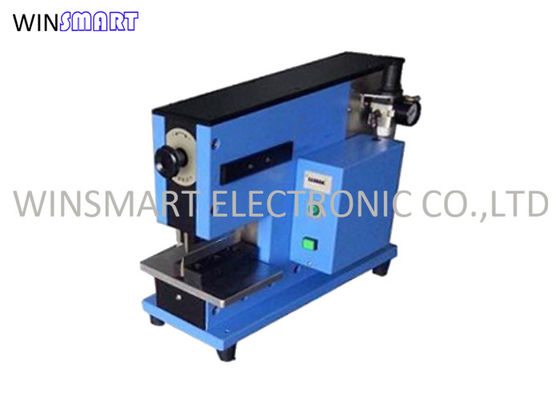

V-Cut PCB Separator Details:
